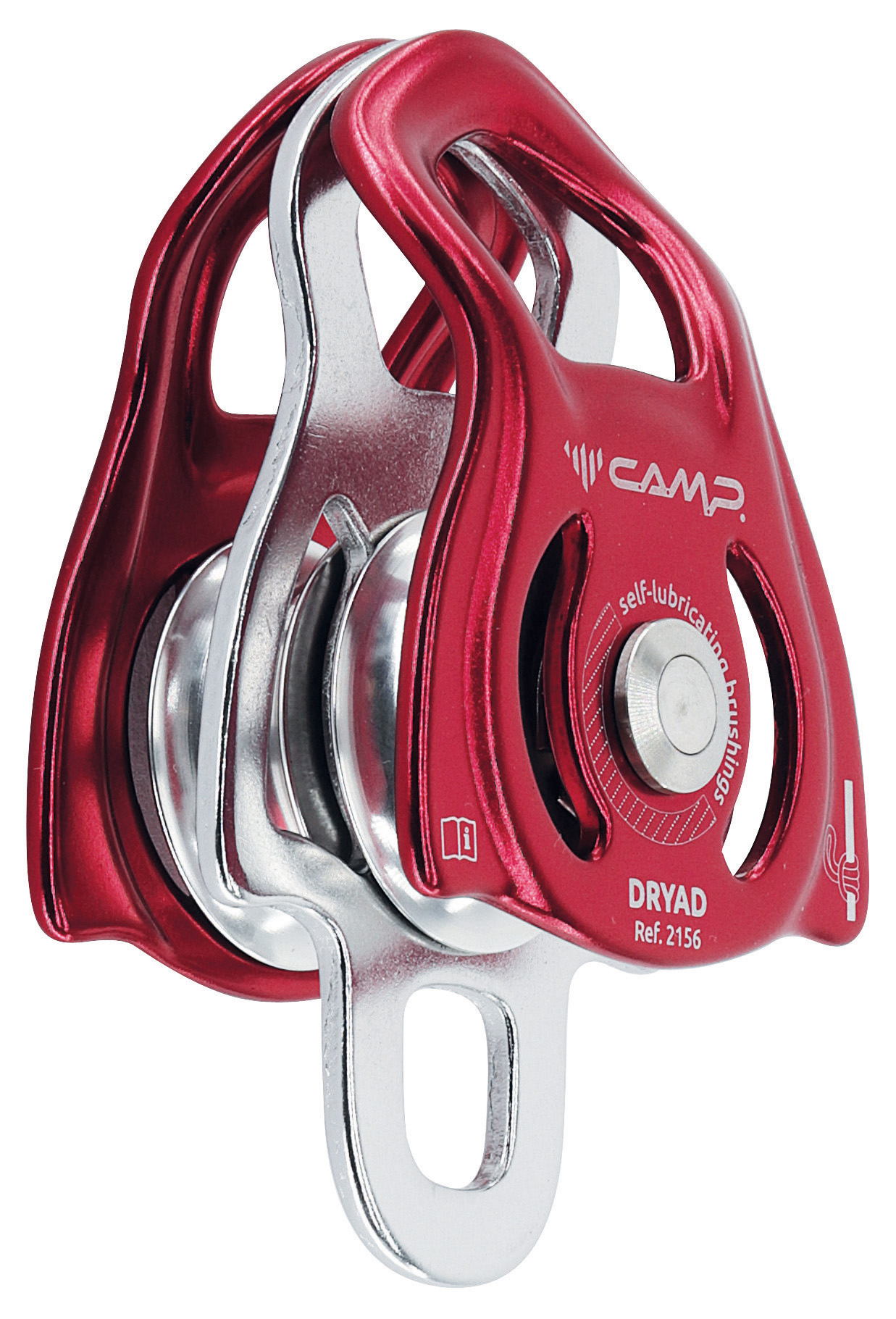

Compact double pulley for block-and-tackle systems.
Availability: Ship in 2-4 weeks
TECHNICAL DETAILS
| SKU | Product Name | Price | Breaking Load | Inner sheave diameter | Material | Type | Weight | Rope diameter | Working load Max | ![]() | ![]() | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| g | oz | kN | LBF | ||||||||||
| 2156 | DRYAD | $82.00 + GST | 24 | 28 | Aluminum alloy | Brass bushing | 170 | 6.0 | 13 | 1 kN x 4 = 4 kN | 225 LBF x 4 = 900 LBF | ● | ● |
| 2157 | DRYAD PRO | $98.00 + GST | 26 | 28 | Aluminum alloy | Ball bearings | 155 | 5.5 | 13 | 1,8 kN x 4 = 7 kN | 405 LBF x 4 = 1574 LBF | ● | ● |
NOTE

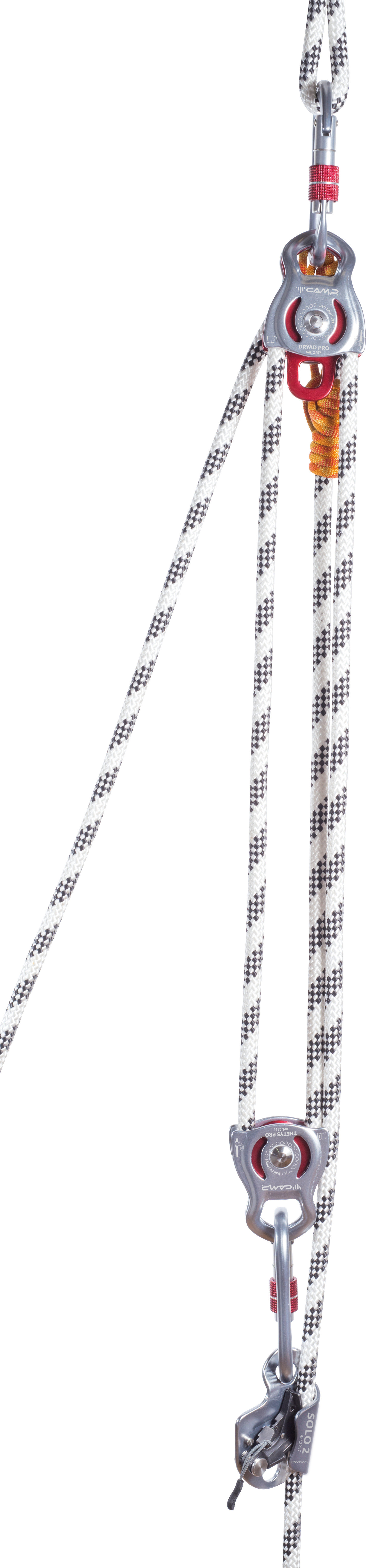

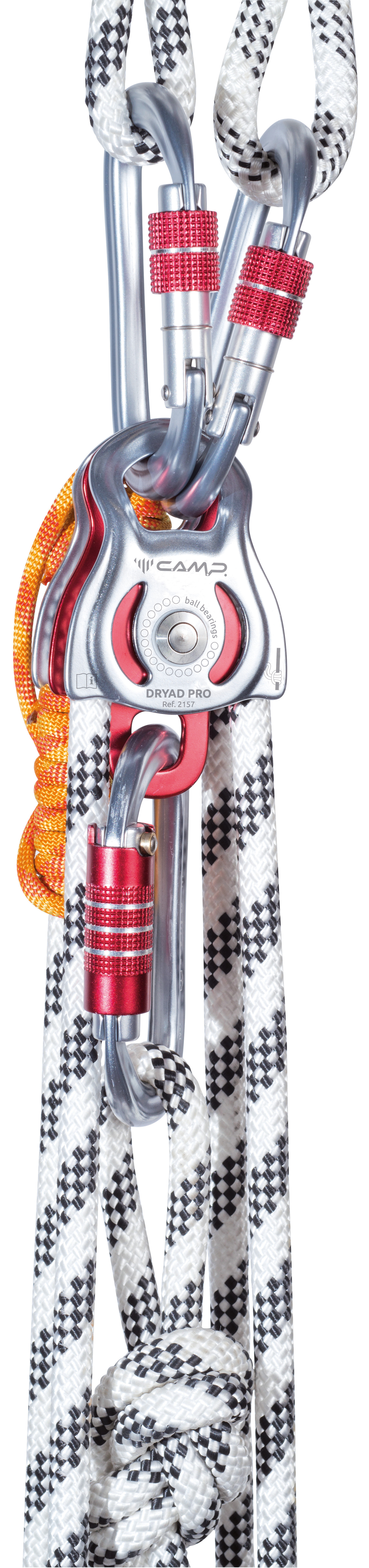

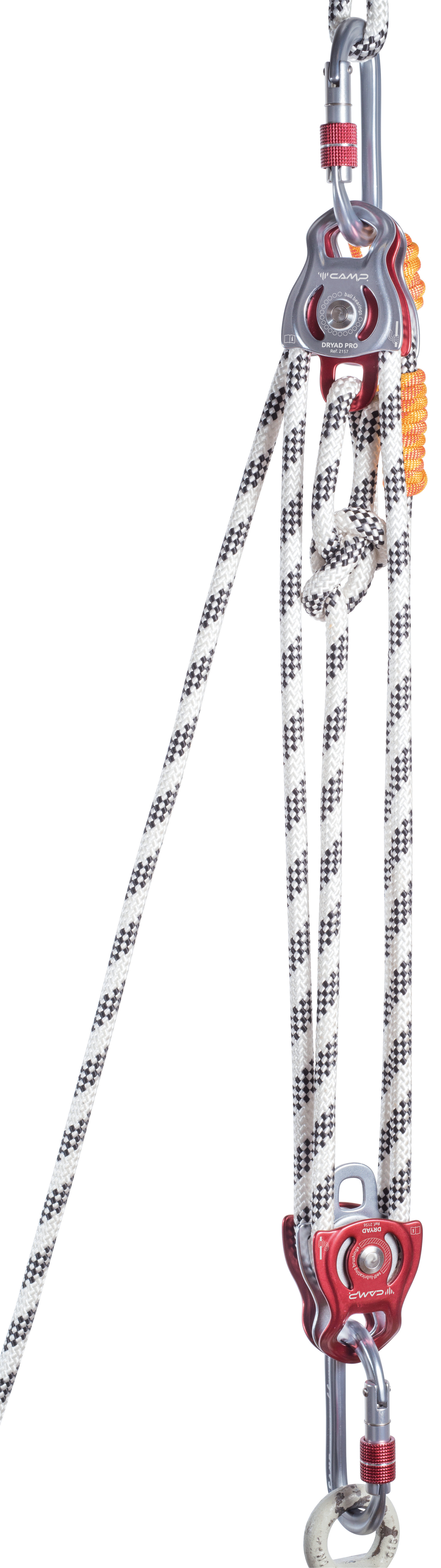

Main attachment point accommodates two carabiners and the becket features a bottom attachment point for linking components in a block-and-tackle system. For use with ropes up to 13 mm. Prusik minding, the self-locking knot can be installed on both sides of both wheels. Self-lubricated brass bushings are sufficient for light applications at low speed. Efficiency: 80%. Aluminum alloy body and wheels, stainless steel axle.
